summarize
This machine is suitable for pharmaceutical, chemical, food and other industries, is a supporting equipment before the micro-grinding process, it is not subject to the material viscosity, hardness, softness and fiber and other restrictions, can play a better crushing effect on any material.
Principle and characteristics

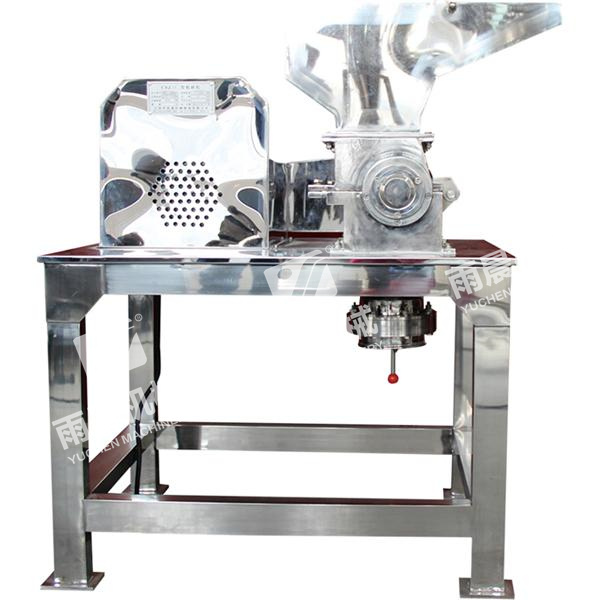

The machine is a horizontal crushing structure, the material enters the crushing chamber by the hopper, the impact and shear of the rotary blade and the fixed blade are used to crush, and the material automatically flows to the exit through the action of rotating centrifugation. The machine is designed according to the "GMP" standard, the whole machine is made of stainless steel material, simple structure, easy cleaning, low noise, is currently the most ideal equipment for rough grinding.
Main technical parameters
|
型號 |
生產(chǎn)能力 |
進(jìn)料粒度 |
出料粒度 |
主機(jī)功率 |
主軸轉(zhuǎn)速 |
外形尺寸 |
重量 |
|
CSJ-30 |
100-500 |
≤100 |
0.5-20 |
4 | 960 |
700x600x1200 |
280 |
|
CSJ-40 |
300-1200 |
≤100 |
0.5-20 |
7.5 | 700 |
820x700x1320 |
360 |
|
CSJ-60 |
500-2000 |
≤150 |
0.5-20 |
11 | 600 |
1200x900x1400 |
550 |
